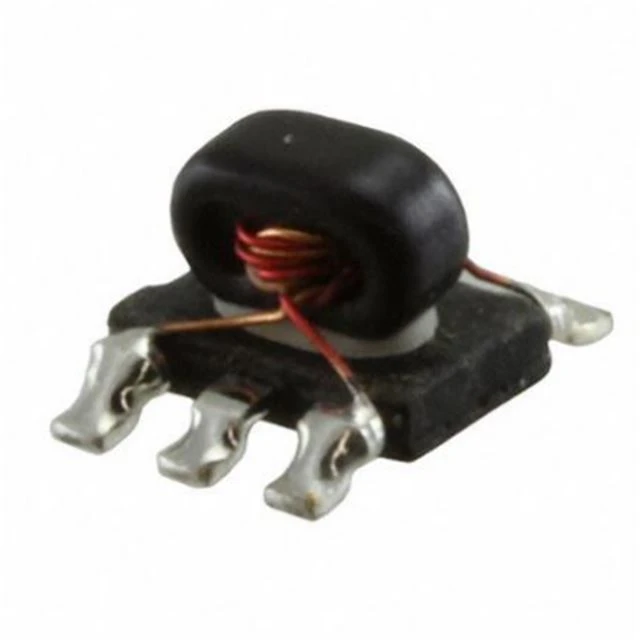

Lub Tshuab Transformer Chev Balun Transformer RF
Tus Qauv Zauv: TB4F
Kev Siv: Hluav Taws Xob
Theem: Lwm Yam
Chev Txheej Txheem: Toroidal
Chev Tooj: Autotransformer
Hauj lwm lawm
Kev tsis
Hloov Kho Hluav Taws Xob Balun Kev Hloov Pauv Hloov RFintroduction
Transformer Coil Balun Transformer RFhas peb qho haujlwm tseem ceeb:
1.Txuas tam sim no lossis voltage los ntawm qhov tsis sib npaug rau qhov sib npaug
2. Hom-ua tam sim no tsis lees txais los ntawm qee qhov kev teeb tsa
3. Impedance hloov dua siab tshiab los ntawm qee cov qauv (impedance piv tsis sib npaug li 1: 1) Muaj ntau ntau yam ntawm baluns, qee qhov tau siv rau impedance hloov dua siab tshiab thiab qee qhov siv los txuas cov kab sib kis nrog txawv impedances. Impedance hloov dua siab tshiab baluns pab impedance txuam, DC rho tawm, thiab qhov sib txuam ntawm qhov chaw nres nkoj kom sib npaug rau cov chaw nres nkoj ib leeg. Hom khaub thuas caj pas kuj yog ib hom ntawm cov pob nyob hauv qhov kev txiav txim siab vim tias nws tuaj yeem tshem tawm cov teeb liab hom nquag. Baluns siv nyob rau hauv laub-rub cov amplifiers, broadband antennas, sib xyaw sib xyaw, sib npaug ntawm cov cav sib luag thiab cov hloov pauv, theem hloov, thiab txhua cov qauv hluav taws xob uas yuav tsum muaj sib npaug ntawm qhov ntau thiab 180-degree theem sib txawv ntawm ob kab.
Cov npe ntawm RF Balun Transformer (75Ω) | ||||||||
Feem Thib | Ω Piv txwv PRI / SEC | Zaus (MHz) | Teeb Pom Kev Poob (dB) Max | Cov tswv yim R Poob (dB) Min | Amplitude (dB) Ntaus | Theem (°) Hom | ||
TB2F-458PT-3713-H105 | 1: 1CT | 1-300 | 1.5 | 15.0 | 0.3 | 1.0 | ||
TB2F-458PT-1062-H078 | 1: 2CT | 1-300 | 1.2 .2 | 14.0 | 0.0 | 0.0 | ||
TB2F-458PT-3743-H105 | 1: 4CT | 1-350 | 1.5 | 6.0 | 0.3 | 1.0 | ||
TB2F-458PT-0181-G081 | 1: 9CT | 5-90 | 1.8 | 13.0 | 0.1 | 0.5 | ||
TB2F-617DB-0245-F086 | 1: 1 | 46-1002 | 1.2 .2 | 18.0 | 0.3 | 0.0 | ||
TB2F-617DB-5793-I082 | 1: 1 | 5-1250 | 1.0 | 16.0 | 0.6 | 10.0 | ||
TB2F-617DB-0282-B084 | 1: 1.33 | 4-2800 | 3.5 | 10.0 | 0.8 | 6.0 | ||
TB2F-617DB-1160-D023 | 1: 1 | 5-1200 | 2.0 | 10.0 | 0.5 | 1.0 | ||
TB3F-458PT-0116A | 9: 1CT | 5-85 | 2.0 | 8.0 | 0.5 | 5.0 | ||
TB4F-617DB-2500-D220 | 1: 1 | 5-1250 | 2.0 | 10.0 | 0.2 | 6.0 | ||
TB4F-617DB-7731-F189 | 1: 1 | 50-2150 | 3.0 | 13.0 | 0.5 | 10.0 | ||
TB4F-458PT-9594-G003 | 1: 1CT | 5-200 | 1.5 | 10.0 | 0.5 | 5.0 | ||
TB4F-458PT-9594-H096 | 1: 1CT | 5-200 | 1.5 | 10.0 | 0.3 | 0.0 | ||
TB4F-458PT-7532-H005 | 1: 1CT | 5-200 | 1.0 | 10.0 | 0.2 | 1.0 | ||
TB4F-458PT-7512-G081 | 1: 1.6CT | 5-350 | 1.5 | 15.0 | 0.5 | 5.0 | ||
TB4F-458PT-0068F | 2: 1CT | 5-200 | 1.3 | 12.0 | 0.5 | 2.0 | ||
TB5F-458PT-1002-H314 | 4: 1CT | 5-200 | 3.0 | 3.0 | 0.6 | 1.2 .2 | ||
TB5F-458PT-4535-H096 | 1.3CT: 1CT | 1-250 | 1.5 | 18.0 | 0.3 | 10.0 | ||
TB5F-458PT-1566-H272 | 1: 1CT | 5-100 | 2.0 | 10.0 | 0.5 | 1.0 | ||
TB5F-458PT-3688-H277 | 1: 1CT | 5-200 | 2.0 | 8.0 | 0.7 | 0.3 | ||
TB5F-458PT-2002-G006 | 2: 1CT | 5-100 | 2.0 | 4.0 | 0.1 | 3.0 | ||
TB7F-458PT-1002-G314 | 4: 1CT | 5-200 | 2.5 | 5.0 | 0.1 | 2.0 | ||
TB7F-617DB-1029-D321 | 1: 2CT | 5-1250 | 3.5 | 12.0 | 0.5 | 8.0 | ||
TB7F-617DB-2010-D315 | 1: 2CT | 5-1250 | 2.2 | 8.0 | 0.6 | 3.0 | ||
TB7F-617DB-9210-D243 | 1: 1 | 40-1250 | 1.6 | 12.0 | 0.3 | 1.0 | ||
Daim ntaub ntawv:
◆ Rau ntau qhov ntau ntawm RF & CATV kev siv
◆ Rau cov txais / VHF / UHF cov txais / cov xa tawm thiab cov rub tawm rub kom loj zog

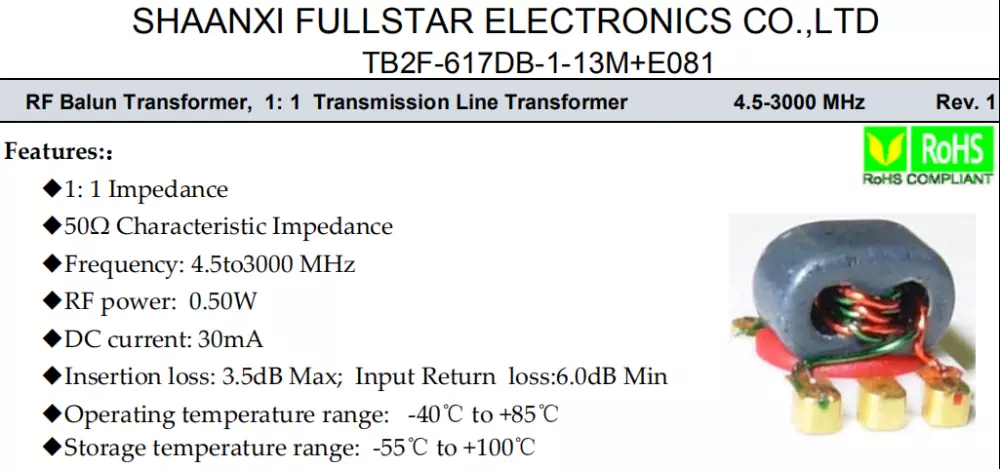

Khoom feature
1.1: 1vimtxojsiab
2.50 Ωcharacteristic Tsis Txaus
3.Frequency: 4.5 txog 3000MHz
4.RF fais fab: 0.50W
5.DC tam sim no: 30mA
6.Ierertion poob: 3.5dB Max; Cov tswv yim Xa tuaj poob: 6.0dB Min
7. Kev ntsuas kub ntau; -40 ℃ to +85 ℃
8.Storage qhov kub thiab txias ntau: -55 txog ℃ + 100 ℃
Cov FAQ
1.Q: Vim li cas ho xaiv peb?
A: Fullstar tau tau mam manufactureuring customized inductors rau ntau tshaj 24 xyoos.
2.Q: Doyouhaveanycertificates?
A: WehaveCE, RoHS, CCC, CQC, ISO9001: 2015 Daim Ntawv Pov Thawj.
3.Q: Howaboutyourproductsqualityinspection?
A: WehaveprofessionalQAandQCteams. 100% qualityinspectionisperformedbefore zaub mov xa tuaj.
4.Q: Canyou sivourlogo?
A: WeacceptOEMandODMproduction.
5.Q: Whatyourqualityguarantee?
A: Peb kho cov khoom kho nyob rau sab hauv 18months yog tias tsim nyog.
