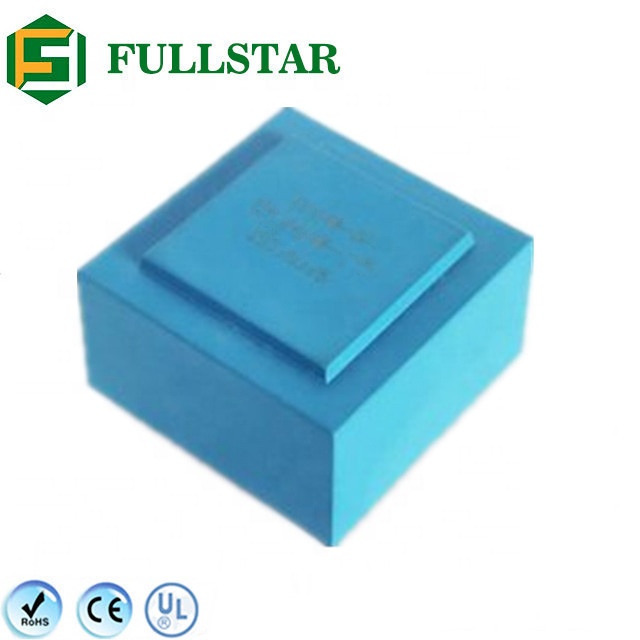

PCB Mount Transformers EE2010
2.Qhov ntaub ntawv pov thawj.
3.Cov khoom nqe thiab kev pabcuam.
4.customize raws li koj cov kev xav tau.
5.Application: kev ruaj ntseg hauv tsev, VCD / DV
Hauj lwm lawm
Kev tsis
PCB Mount Transformers EE2010introduction
50 / 60HZ PCB MOUNT HLOOV 0.5VA-0.6VA FE20 / 10 SERIES
NTA:
.CE / VDE pom zoo
.Pej nyob hauv qab nqus tsev
.Dielectric lub zog- 4000Vrms
.Meet nrog UL94V-0 fl ammability yuav tsum
Kev ntsuas kev kawm-chav B (130 ℃)
Kev cai tsim muaj
KEV HLOOV HLOOV LOJ HAUV LUB HLIS (@ 25 ° C) | ||||
Lub Koom Haum Me Nyuam (230V) | Lub Koom Haum Me Nyuam (115V) | Secondary (V / mA) | Tsis-thauj voltage (V) | Daim duab. |
FE2006001 | FE2006101 | 6/ 58 | 0. 35 | 1 |
FE2006002 | FE2006102 | 6/ 75 | 0. 45 | 1 |
FE2006003 | FE2006103 | 9/ 39 | 0. 35 | 1 |
FE2006004 | FE2006104 | 9/ 50 | 0. 45 | 1 |
FE2006005 | FE2006105 | 12/ 29 | 0. 35 | 1 |
FE2006006 | FE2006106 | 12/ 38 | 0. 45 | 1 |
FE2006007 | FE3010107 | 15/ 23 | 0. 35 | 1 |
FE2006008 | FE2006108 | 15/ 30 | 0. 45 | 1 |
FE2006009 | FE2006109 | 18/ 19 | 0. 35 | 1 |
FE2006010 | FE2006110 | 18/ 25 | 0. 45 | 1 |
FE2006011 | FE2006111 | 24/ 15 | 0. 35 | 1 |
FE2006012 | FE2006112 | 24/ 19 | 0. 45 | 1 |
Lub Koom Haum Me Nyuam (230V) | Lub Koom Haum Me Nyuam (115V) | Secondary (V / mA) | Tsis-thauj voltage (V) | Daim duab. |
FE2006013 | FE2006113 | 2X6/ 29 | 0. 35 | 2 |
FE2006014 | FE2006114 | 2X6/ 38 | 0. 45 | 2 |
FE2006015 | FE2006115 | 2X9/ 19 | 0. 35 | 2 |
FE2006016 | FE2006116 | 2X9/ 25 | 0. 45 | 2 |
FE2006017 | FE2006117 | 2X12/ 15 | 0. 35 | 2 |
FE2006018 | FE2006118 | 2X12/ 19 | 0. 45 | 2 |
FE2006019 | FE2006119 | 2X15/ 12 | 0. 35 | 2 |
FE2006020 | FE2006120 | 2X15/ 15 | 0. 45 | 2 |
FE2006021 | FE2006121 | 2X18/ 10 | 0. 35 | 2 |
FE2006022 | FE2006122 | 2X18/ 13 | 0. 45 | 2 |
FE2006023 | FE2006123 | 2X24/ 7 | 0. 35 | 2 |
FE2006024 | FE2006124 | 2X24/ 9 | 0. 45 | 2 |
Zaus 50 / 60Hz Potted hauv tshuab nqus tsev
Faib- bobbin Chav kawm kub txog 70 ° C / B
Luv-Circuit Court-pov thawj qhov hnyav: 0.024kg
Daim ntawv thov khoom
1-Residual Circuit Court tej fais fab
2.-Lub ntiaj teb Xau thaiv kev tiv thaiv khawm
3.-Taug thaiv kev tiv thaiv Circuit Court Breaker
4.-Tuav Circuit Court tiv thaiv ntsaws (Khoom tawg Circuit Court Interrupter -ALCI)
Cov FAQ
1.Q: Vim li cas ho xaiv peb?
A: Fullstar tau ua kev tsim khoom lag luam customized inductors rau ntau dua 24 xyoos.
2.Q: Doyouhaveanycertificates?
A: WehaveCE, RoHS, CCC, CQC, ISO9001: 2015 Daim Ntawv Pov Thawj.
3.Q: Howaboutyourproductsqualityinspection?
A: WehaveprofessionalQAandQCteams. 100% qualityinspectionisperformedbefore zaub mov xa tuaj.
4.Q: Canyou sivourlogo?
A: WeacceptOEMandODMproduction.
5.Q: Dab tsi' syourqualityguarantee?
A: Peb kho cov khoom kho nyob rau sab hauv 18months yog tias tsim nyog.
