Muab cov neeg siv khoom zoo thiab tus qauv- ua cov khoom siv hluav taws xob thiab cov khoom siv tsis zoo toroidal silicon core thiab cov khoom siv daws teeb meem, Fullstar Electronics yog cov chaw tsim khoom toroidal silicon core thiab cov chaw muag khoom hauv Suav teb. Txais tos rau cov lag luam wholesale electronics toroidal silicon core los ntawm peb lub hoobkas.
Khoom Description

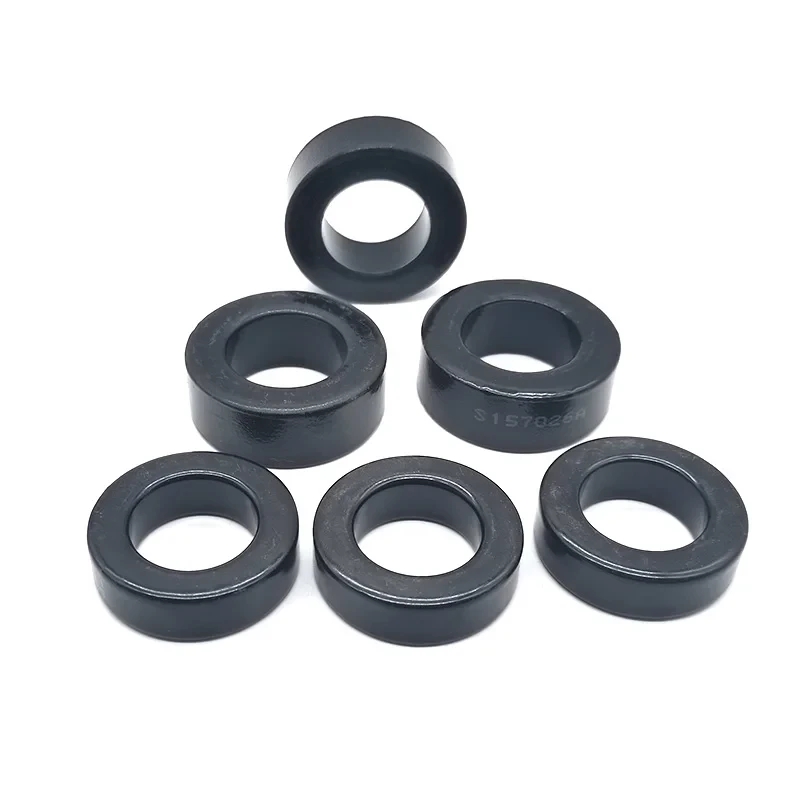

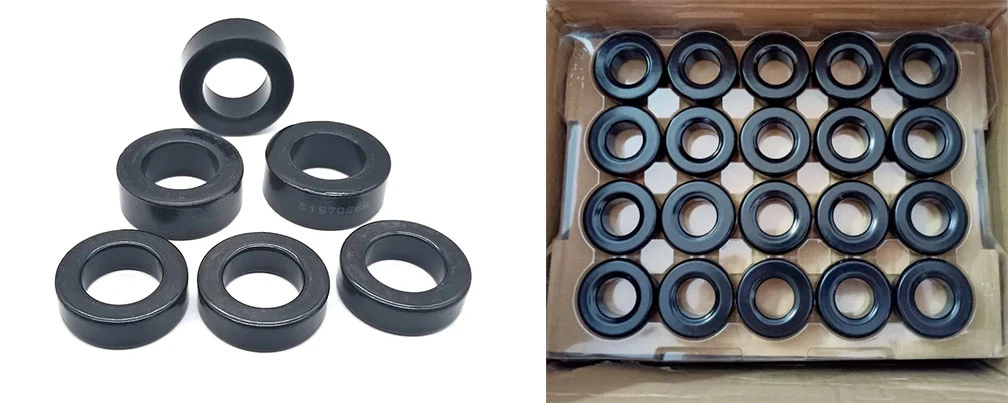

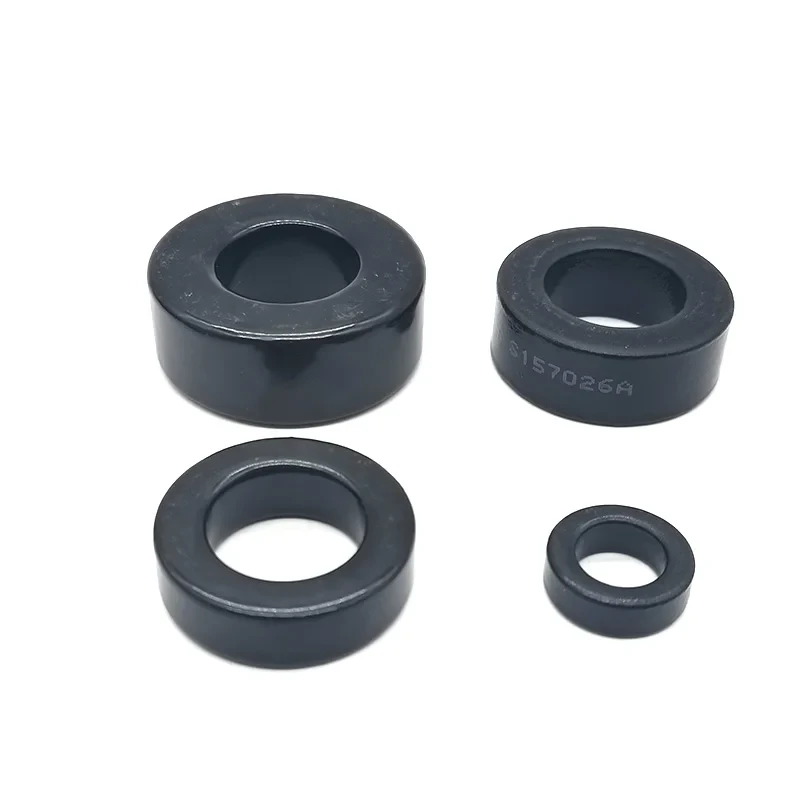

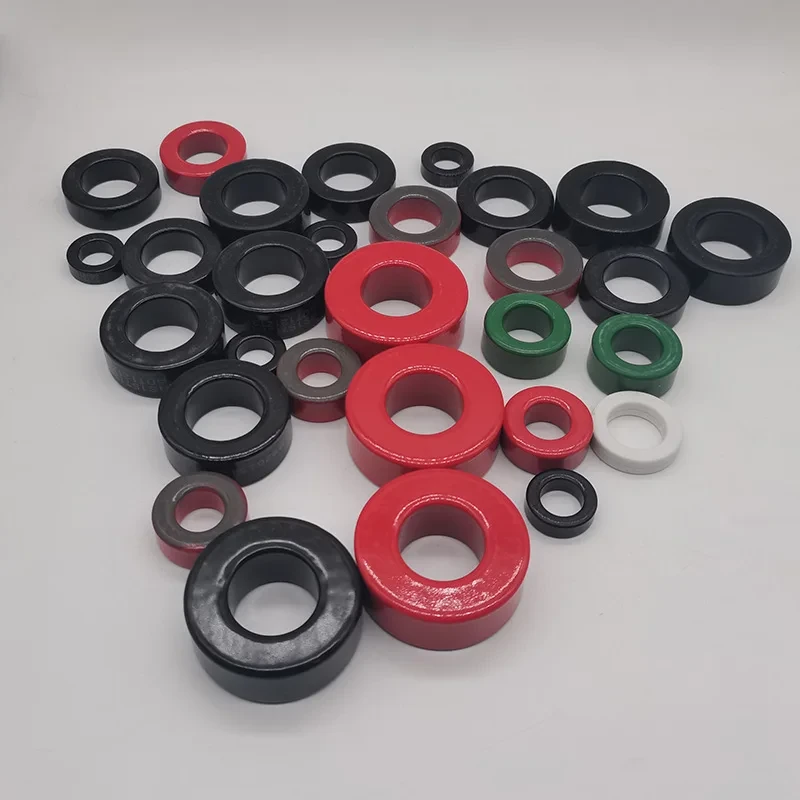

Toroidal Silicon Core(feem ntau hu ua Toroidal Silicon Steel Core) yog cov khoom siv sib nqus ua tau zoo siv dav hauv hluav taws xob hluav taws xob thiab hluav taws xob engineering. Hauv qab no yog cov lus qhia ntxaws ntxaws rau cov tub ntxhais no, ua raws li kev sib piv nrog rau lwm yam loj ntawm cov hlau nplaum sib nqus.
1. Taw qhia rau Toroidal Silicon Core
- Qauv & Khoom siv: Nws yog lub nplhaib txuas ntxiv, seamless -zoo li tus (toroidal) core tsim los ntawm nruj winding siab-zoo txias- dov silicon steel strips (feem ntau hauv qab 0.35mm tuab).
- Core Zoo:
- High Efficiency & Tsawg poob: Txoj kev sib nqus nruam txuas ntxiv ua kom zoo kawg nkaus nrog cov kab sib nqus flux, tshem tawm cov pa tawm hauv cov kab laminated cores. Qhov no txo qis excitation zog thiab cov tub ntxhais poob los ntawm kwv yees li 25%, ua tiav kev hloov hluav taws xob ua tau zoo tshaj 95%.
- Tsawg Leakage Flux & EMI: Lub kaw- lub voj voog kaw kaw qhov chaw sib nqus yuav luag tag nrho hauv cov tub ntxhais, ua rau muaj kev cuam tshuam sab nraud tsis tshua muaj hluav taws xob thiab hluav taws xob.
- Tsawg suab nrov: Qhov tsis muaj qhov sib txawv ntawm huab cua thiab siv lub tshuab nqus tsev impregnation ua rau cov tub ntxhais muaj zog nruj, txo qis kev co thiab hnov suab nrov.
- Compact Size: Rau lub peev xwm muab lub zog, nws qhov ntim thiab qhov hnyav tuaj yeem txo tau li ntawm 50% piv rau cov tsoos E-I cores.
- Tej kev siv: High-cov khoom siv suab nrov, lub zog amplifiers, cov cuab yeej kho mob, hnub ci inverters, thiab cov tshuab hluav taws xob dav dav.
2. Kev sib piv ntawm Magnetic Cores
Sib nqus cores feem ntau yog ntsuas raws li lawvcov ntaub ntawvthiabcov qauv duab. Hauv qab no yog kev sib piv ntawm Toroidal Silicon Cores tiv thaiv lwm cov kev xaiv tseem ceeb.
A. Cov khoom sib piv: Toroidal Silicon vs
| Cov khoom siv tseem ceeb | Cov yam ntxwv tseem ceeb | Tej kev siv |
|---|---|---|
| Silicon hlau (Toroidal) | High saturation flux ceev (1.5-2.0T), tsis tshua muaj permeability, haum rau tsawg zaus (xws li, 50/60Hz). | Fais fab transformers, tsawg- zaus inductors. |
| Ferrite | Kev tiv thaiv siab, tsis tshua muaj siab - zaus poob, qis saturation flux ceev. Tus nqi- zoo. | Hloov cov khoom siv hluav taws xob, EMI lim, RF circuits. |
| Hlau hmoov | High saturation flux density, zoo heev DC bias kam rau ua (anti-saturation), faib huab cua sib txawv. | PFC inductors, lub zog cia chokes, DC -DC converters. |
| Amorphous / Nanocrystalline | Ultra-cov tub ntxhais poob qis, siab permeability, zoo heev - zaus ua haujlwm. | High-kawg EV OBCs, precision tam sim no sensors, siab -cov khoom siv fais fab. |
B. Cov qauv sib piv: Toroidal vs
| Core Structure | Qhov zoo | Qhov tsis zoo | Tej kev siv |
|---|---|---|---|
| Toroidal Core | Kaw magnetic txoj kev, qis tshaj tawm flux, high efficiency, compact loj. | Winding yog qhov nyuaj thiab kim; tsis haum rau lub zog cia inductors xav tau huab cua sib txawv. | High-frequency transformers, common-mode chokes, audio transformers. |
| E-Core / EI-Core | Yooj yim rau cua, yooj yim ntxiv cov pa tawm rau inductance hloov, zoo heev cua sov dissipation, tus nqi qis. | Qhib txoj kev sib nqus ua rau cov dej ntws ntau dua; yuav tsum tau EMI shielding. | Hloov fais fab transformers, siab - zog inductors. |
| PQ / RM tub ntxhais | Optimized ntim-rau- zog piv, zoo dua tshav kub dissipation dua toroids, tsawg to flux. | Tus nqi siab dua, xav tau cov cuab yeej tshwj xeeb winding. | High -kev ua tau zoo hloov cov khoom siv hluav taws xob, cov khoom siv hluav taws xob compact. |
| Lub lauj kaub Core | Qhov zoo tshaj plaws EMI shielding (tag nrho enclosed qauv). | Tsis zoo cua sov dissipation, tus nqi siab tshaj. | Kev kho mob duab, rhiab RF circuits. |
Summary for Xaiv
- Rau Tsawg-Frequency Power & Audio: XaivToroidal Silicon Coresrau lawv cov high efficiency, tsis muaj suab nrov, thiab compact loj.
- Rau siab -Frequency & Cost Sensitivity: XaivFerritecov ntaub ntawv hauvE-Hloov lossis PQcov qauv rau kev tsim khoom yooj yim thiab zoo cua sov dissipation.
- Rau High DC Tam sim no & Lub Zog Cia: XaivHlau hmoovcov ntaub ntawv, raws li lawv tiv saturation zoo.
- Rau qhov kawg Efficiency & High -End Applications: XaivNanocrystalline / Amorphouscov ntaub ntawv, txawm tias lawv cov nqi siab dua.
