Vim li cas toroidal transformers ua haujlwm tau zoo?

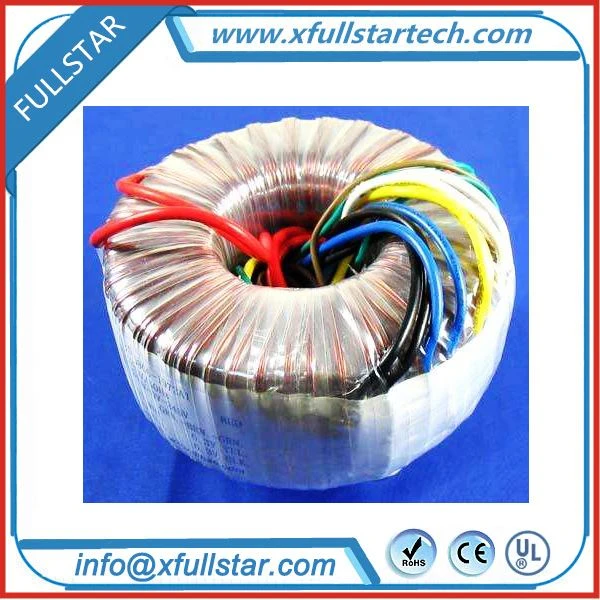

Tag nrho cov inverters tsawg zaus yuav tsum tau ib tug transformer, piv rau lwm yam transformers, peb ib leeg -theem inverters feem ntau siv ib tug toroidal transformer. Yog li dab tsi yog qhov txiaj ntsig ntawm kev siv lub toroidal transformer?

1. Kev poob qis, kev ua haujlwm siab, tsis muaj cua sib txawv hauv cov tub ntxhais hlau, pawg coefficient tuaj yeem ncav cuag ntau dua 95 feem pua, qhov sib nqus permeability ntawm cov tub ntxhais hlau tuaj yeem ncav cuag 1.51.8T (cov tub ntxhais laminated tsuas yog 1.21.4T), thiab cov hluav taws xob ua haujlwm tau zoo li ntau tshaj 95 feem pua, qhov tsis muaj -load tam sim no tsuas yog 10 feem pua ​​​​ntawm cov laminated hom. Siv lub toroidal transformer tuaj yeem txhim kho qhov kev ua haujlwm zoo ntawm lub inverter.

2. Me me thiab lub teeb yuag. Toroidal transformers hnyav tsuas yog ib nrab ntawm qhov hnyav ntawm laminated transformers. Ntev npaum li tus ntoo khaub lig- ntu ntu ntawm cov tub ntxhais sib npaug, lub toroidal transformer tuaj yeem hloov pauv qhov sib piv ntawm cov tub ntxhais tau yooj yim, thiab qhov ntev sab nraud tuaj yeem tsim kom tau raws li qhov xav tau. Siv lub toroidal transformer tuaj yeem ua rau lub inverter sib zog thiab nqa tau yooj yim dua.

3. Cov tub ntxhais toroidal tsis muaj qhov sib txawv ntawm huab cua, thiab lub suab nrov ntawm lub tshuab hluav taws xob thiab hluav taws xob cuam tshuam ntawm toroidal transformer yog me dua li ntawm cov tsoos transformer.

4. Tsawg vibration thiab suab nrov. Lub toroidal transformer core tsis muaj qhov sib txawv ntawm huab cua, uas txo cov suab nrov los ntawm kev cuam tshuam ntawm cov tub ntxhais. Cov windings yog nruj nreem qhwv ib ncig ntawm lub toroidal core, zoo txo ​​cov hum los ntawm magnetostriction. Siv lub toroidal transformer tuaj yeem txo cov suab nrov ntawm lub inverter.

5. Tsawg ua haujlwm kub. Cov hlau poob ntawm lub toroidal transformer yog me me, qhov kub nce ntawm cov tub ntxhais hlau yog qhov tsawg, thiab cov cua sov dissipation ntawm lub winding ntawm qhov kub ntawm cov tub ntxhais hlau yog qhov zoo, yog li qhov kub ntawm lub transformer yog tsawg.
