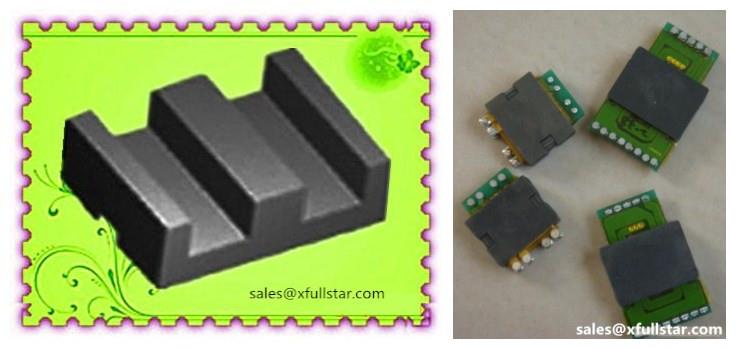

Loj planar transformer ferrite ntxhais nrog RoHS raws txoj caj

Hom: Planar ferrite ntxhais

P/N: TSO ZIS / PEI SERIES

Rau cov tub ntxhais magnetic planar expands qhov ntim ntawm cov tub ntxhais los ua lub dav hlau loj tiam sis yuav txog qhov kom siab li lub magnetic tub ntxhais.

Hom tau tsam:

Tsis tshua muaj to inductance

Ted repeatability

Kev kawm yav tom ntej hluav taws xob

Kev sib dhos Economic

Zoo tshaj txhua yam

Ted dissipation

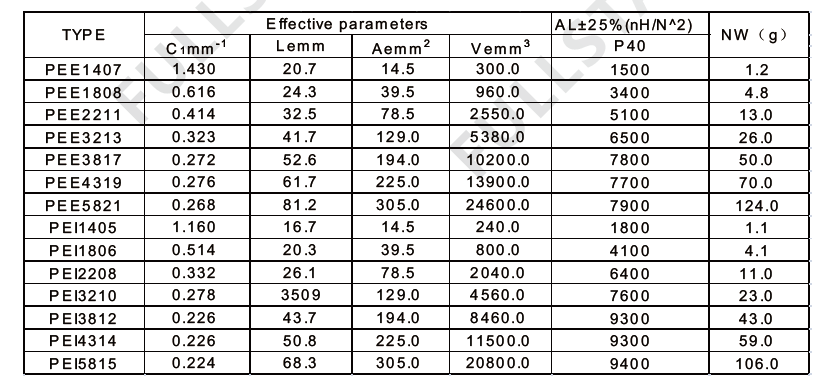

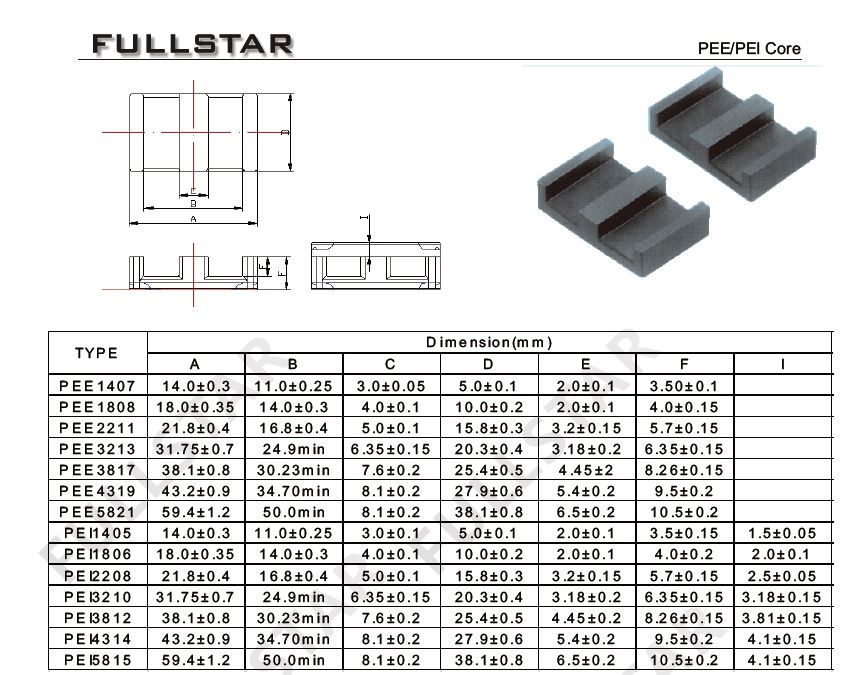

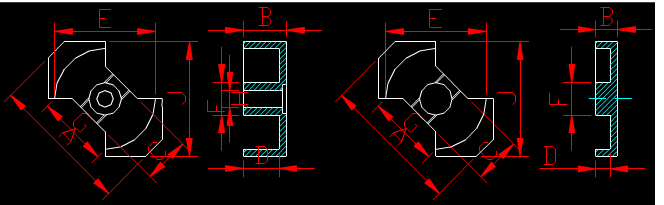

Dimension thiab Specs

Muaj cov txwv nruj heev txog txoj kev siv cov planar magnetic cores, magnetic planar ntxhais xwb ib nrab ntawm lub qhov rais loj lawm, mas tsis zoo ntau lawm cov khoom uas kub inductance, vim qhov nce rau inductance yuav ua tau kom cheeb tsam hauv lub winding.

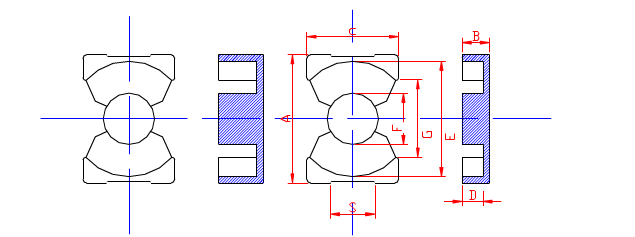

Dhau li ntawm yam E, muaj ntau lwm cores planar, xws li yam PQ thiab hom PM.

Muaj ntau txoj hau kev rau winding planar transformer 4

1)Multilayer PCB

2)Txhawb kev ntawm nws tus kheej PCB

3)Vaj huam sib luag ib

4)Wireway

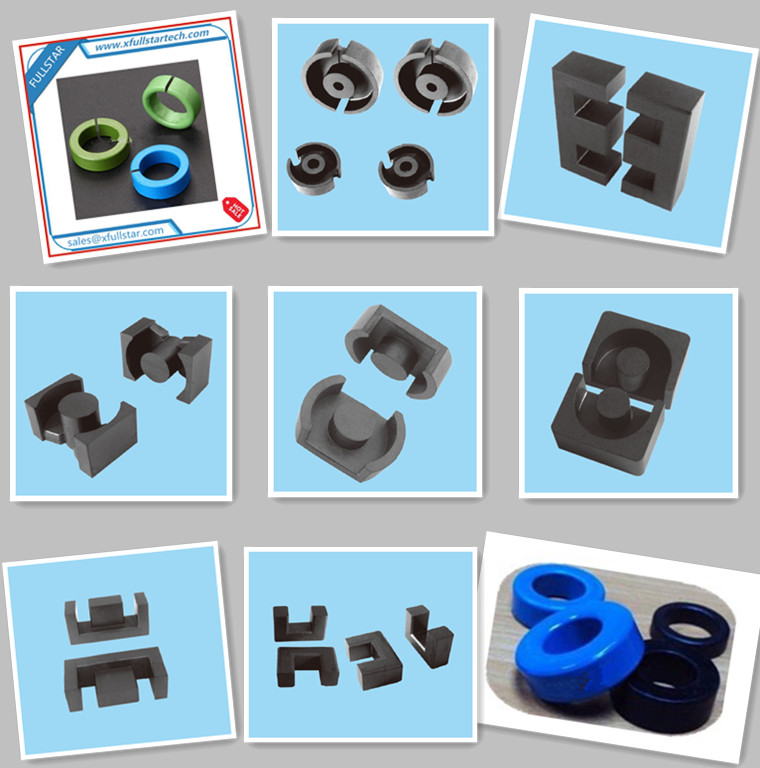

Thov mus saib lwmferrite cores

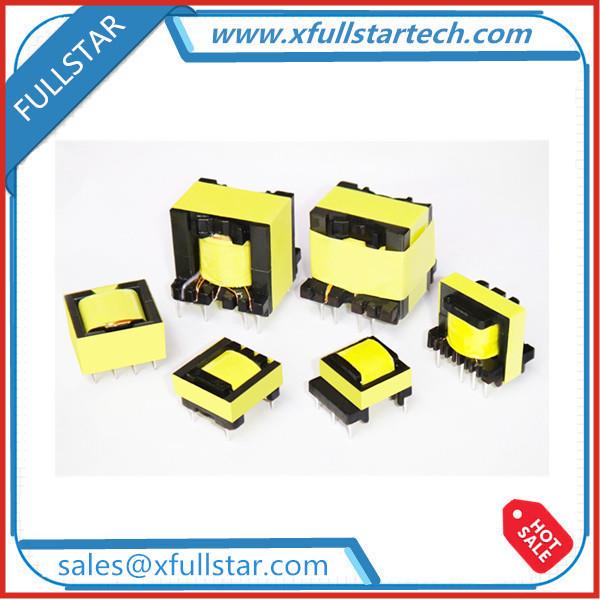

FAIS switching transformer

TIV TAUJ INFO:

QQ: 1478124633

Skype: sophie84_2005116

Wechat: 55911767

WhatsApp: 15829062422

TEL: 86-29-86676405 /

15829062422/18192289495

Xa ntawv:Sales@xfullstar.com

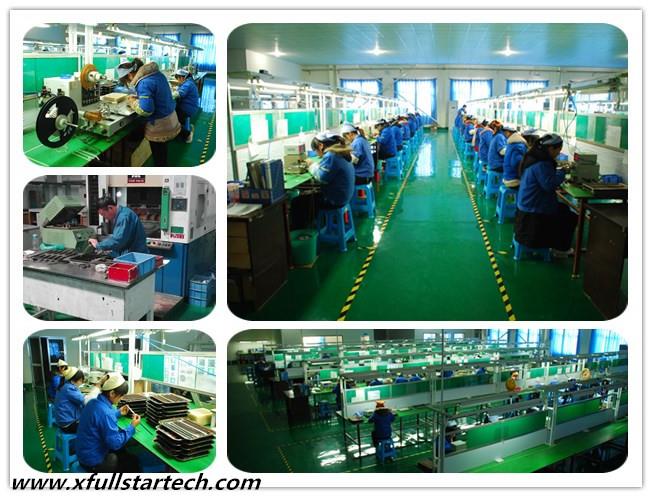

FULLSTAR ZOO
