Kev tsum rau kis tau tus txhawm chim ntau hom mob Nanocrystalline cores

Hom: FULLSTAR Series--

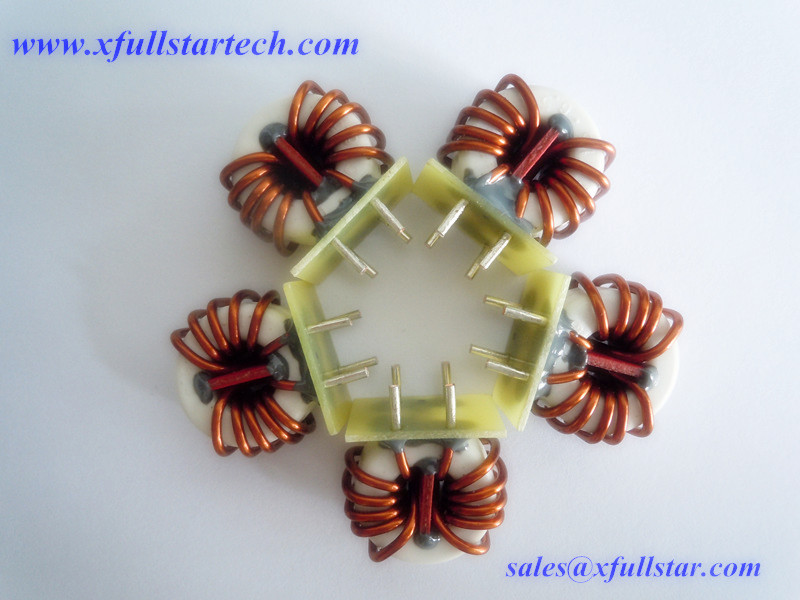

FTR series (hoob toroidal winding)

FTRB Series (toroidal ntxhais winding nrog puag)

Sib nqus zog ntawm ntau hom txhawm chim

Lub zog magnetic induction saturation: Bs（T）1.25

npe permeability: μi(Gs/Oe)〉8×104
Siab tshaj plaws permeability: μm(Gs/Oe)〉20×104
Hwjchim coercive: Hc（A / m）andlt; 2
Kub: Tc Curie（℃）560
Kub: Tx crystallization（℃）500
Saturation magnetostrictive coefficient: λs andlt; 2 × 10-6〈2
Nruam ua kub:℃-50~130
Magnetic residual induction zog: Br（T）0.5~0.8
Luam hluav taws: P（20kHz，0.5T），（W/kg）〈25
Luam hluav taws: P（100kHz，0.2T），（W/kg）〈70
Tus twg tsis hloov: ΔP (-50 ~ 125℃)〈15％

Ntau hom inductor cov yam ntxwv

Ntau hom inductor, saturable inductor thiab suppressor ncov yog tag teeb liab me me hauv lub xeev, inductance dua yog ib qho zoo.

L = 0.4 PI µ eN2Se/100 x kuv (µ h) nyob rau hauv cov mis mos: vim yog

µ permeability e: zoo

S: zoo cheeb tsam cross-sectional (cm2)

N: lub winding puv L

Kuv: qhov nruab nrab kom muaj kev (CM)

Mob(nurses), cov me me ib yam ntawm cov tub ntxhais, lub zoo permeability µ e yooj yim dua thiab inductance ntau dua, thiab yog li ntau hom inductors, saturable inductor thiab ncov suppressor los ntawm amorphous thiab nanocrystalline alloy tub ntxhais muaj tus yam ntxwv li nram no:

Siab zoo permeability,

Siab inductance,

Me

Wires ua si kev nyuaj siab yog tsawg kawg, uas tsis muaj hluav taws

Tsis winding koj lem tooj, me faib capacitance

Siab saturation magnetic induction thiab EMI nrov nyhuv

Siab Curie temp taw tes, kev ruaj khov kub (-50℃ ~ +130 ℃)

Cov yam ntxwv zoo zaus

Daim ntawv thov:

Switching hom fais fab mov

Cov mov fais uninterrupted ce

Mem tes vuam siv

Fais fab converter

Cua hwjchim generator

Ntau yam li kis tau tus mob

Lwm yam tib theem los yog peb theem hwj huam kav thiab ntau hom lim rau ntau yam hwj huam mov

Tus ua hauj lwm cai hais:

Thaum cov cov chaw ua hauj lwm uas ntws dhau lub ob yam txawv kauj, muaj yog ob tug lawm os sib tawm tus teb H1, H2. Lub sij hawm no, ua hauj lwm tam sim no yog mas cuam tshuam dab tsi ua hauj ohmic lub kauj thiab cov inductance to neglected uas tsis muaj nyob rau hauv kev khiav hauj lwm zaus. Yog hais tias muaj kev cuam teeb liab ndlwg ntawm lub kauj, lub kauj qhia ib cov impedance uas siab, uas ua rau ib qho damping nyhuv after cov nyhuv ntawm teeb liab cuam attenuation.

Taus

RoHS raws txoj caj

Flammability: UL94V-0

ASTM Performance index pa:＞28%

Temp 20℃，48% RH

Saib ntxivntau hom chokes

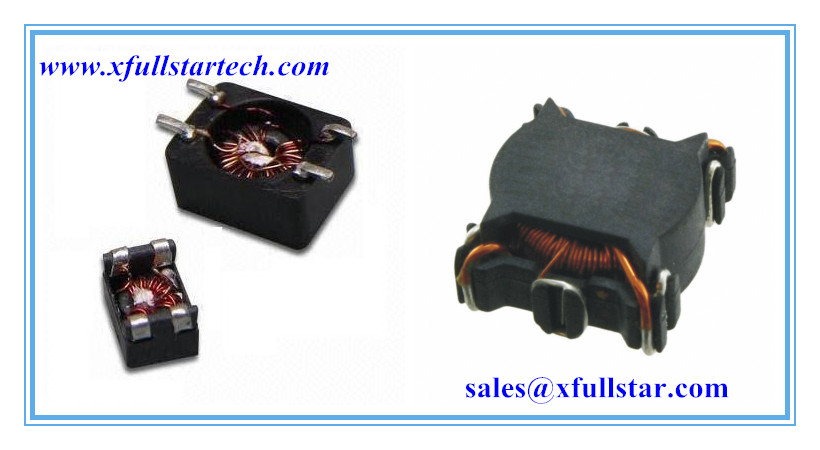

SMD ntau hom txhawm chim
