Muab cov neeg siv khoom zoo thiab tus qauv- ua cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob hloov pauv cov khoom siv hluav taws xob hloov pauv thiab cov khoom siv daws teeb meem, Fullstar Electronics yog cov chaw tsim khoom siv hluav taws xob hloov hluav taws xob thiab cov khoom siv hauv Suav teb. Txais tos rau kev lag luam wholesale hluav taws xob hloov hluav taws xob transformer los ntawm peb lub hoobkas.
Khoom Description
Lub zog hloov hluav taws xob hloov pauv yog qhov tseem ceeb ntawm cov khoom siv hluav taws xob niaj hnub no, feem ntau hu ua "lub plawv ntawm lub zog hloov hluav taws xob." Nws yog feem ntau siv hauv high- zaus circuits thiab yog lub luag haujlwm rau kev hloov pauv hluav taws xob, kev sib cais galvanic, thiab hloov hluav taws xob.

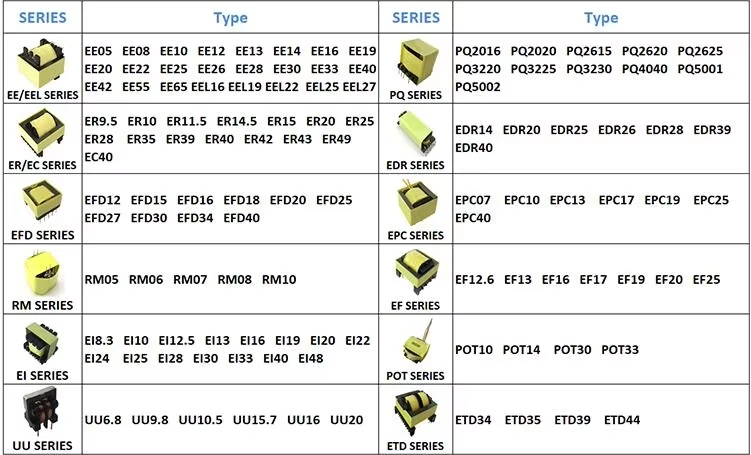

| hloov hluav taws xob transformer | |
|---|---|
| Series | Daim ntawv thov |
| EE/EF Transformer | Hloov fais fab mov, lub ntsiab fais fab transformer |
| EFD / EPC Transformer | Txhawb lub zog transformer, lub ntsiab fais fab transformer, choke coils |
| Tom ntej: PQ Transformer | Applied nyob rau hauv linear lim, choke, mem tes transformer, tsav transformer |
| UAS Transformer | Ntau yam ntawm kev hloov fais fab mov transformer, choke coils |
| Ec/EER/ER Transformer | Linear lim, tam sim no transformer, choke coil|fais fab transformer |
| RM Transformer ua | Lim, inductor, transformer rau kev sib txuas lus |
| POT Transformer | Lim rau cov khoom siv sib txuas lus, inductor thiab transformer |
| EI Transformer ua | Ntau hom transformer thiab chokes |
| Toroidal Core | Pulse thiab dav-band transformers, lim, inductors thiab chokes |
1. Txoj Cai Ua Haujlwm tseem ceeb
Cov kev ua haujlwm yooj yim yog raws li hauv qab no: cov hluav taws xob hloov hluav taws xob (xws li MOSFETs) tau qhib thiab tawm sai sai raws li cov lus txib ntawm kev tswj xyuas hluav taws xob, hloov cov input DC voltage mus rau qhov siab -frequency pulsed AC signal. Cov teeb liab no dhau qhov kev hloov pauv hluav taws xob los ntawm kev hloov pauv thiab tom qab ntawd kho rov qab rau hauv cov zis DC ruaj khov.
2. Qhov zoo tshaj plaws
- Compact loj thiab lub teeb yuag:Kev ua haujlwm siab - zaus tso cai rau siv cov hlau nplaum me me thiab cov windings tsawg dua, ua rau lawv ntau dua compact dua li ib txwm hloov pauv. Qhov no yog qhov zoo tagnrho rau cov khoom siv nqa tau yooj yim thiab qhov chaw- txwv tsis pub siv.
- Kev ua haujlwm siab:Los ntawm kev tsim kho kom zoo thiab cov ntaub ntawv (xws li ferrite, nanocrystalline cores), lub zog poob thiab kev tsim hluav taws xob tau txo qis, nrog kev ua tau zoo feem ntau tshaj 95%.
- Galvanic cais:Tsis muaj kev sib txuas hluav taws xob ncaj qha ntawm cov tswv yim thiab cov zis; lub zog yog pauv tag nrho los ntawm kev sib nqus sib nqus. Qhov no tsis tsuas yog txhim kho lub zog rwb thaiv tsev thiab kev nyab xeeb, tab sis kuj tseem txo qis kev cuam tshuam ntawm electromagnetic cuam tshuam (EMI).
- Flexible Multiple Outputs:Los ntawm kev hloov pauv qhov sib piv ntawm cov coil thib ob, nws yog ib qho yooj yim kom ua tiav ntau qhov sib txawv voltage outputs.
3. Hom thiab hom kev ua haujlwm
- Flyback Topology:Lub transformer ua tsis tau tsuas yog raws li ib tug voltage converter tab sis kuj raws li ib tug cia inductor. Nws khaws lub zog thaum qhov hloov pauv thiab tso nws mus rau lub nra thaum lub qhov hloov pauv. Vim nws cov qauv yooj yim thiab tus nqi qis, nws tau siv dav hauv cov khoom siv qis - lub zog ntawm 5W txog 100W (xws li smartphone chargers).
- Forward Topology:Thaum lub tshuab hluav taws xob qhib, lub zog ncaj qha xa mus rau qhov chaw nruab nrab ntawm lub tshuab hloov pauv. Nws muab lub zog tso zis ntau dua thiab tsim nyog rau siab - cov ntawv siv hluav taws xob los ntawm 100W txog 300W, txawm hais tias nws lub voj voog yog qhov nyuaj thiab kim dua.
Tsis tas li ntawd, muaj ntau txoj kev topologies xws li Push-Pull, Ib nrab- Choj, thiab Full- Choj, uas yog siv rau kev siv hluav taws xob ntau dua.
4. Cov qauv tseem ceeb thiab cov khoom siv
- Core:Feem ntau yog ua los ntawm siab - cov khoom siv sib nqus sib nqus (xws li ferrite lossis amorphous / nanocrystalline cov ntaub ntawv) es tsis yog cov ntaub ntawv silicon steel ib txwm siv, kom haum rau qhov siab thiab txo qhov poob.
- Cua txias:Xws li thawj thiab theem nrab coils. Txhawm rau tiv nrog cov nyhuv ntawm daim tawv nqaij ntawm ntau zaus, ntau -strand twisted xov hlau (Litz hlau) los yog tooj liab foils feem ntau siv.
- Rwb thaiv tsev thiab kev nyab xeeb:Kev tsim cov rwb thaiv tsev nruj nruj (xws li siv triple- insulated hlau los yog polyimide zaj duab xis) yuav tsum tau nyob nruab nrab ntawm cov thawj thiab theem nrab kom ua raws li cov qauv kev nyab xeeb thoob ntiaj teb.
5. Cov xwm txheej ntawm daim ntawv thov
- Consumer Electronics & Telecommunications:Smartphone chargers, laptop adapters, LED tsav tsheb, khoom siv hluav taws xob server, thiab lwm yam.
- Renewable Zog:Hnub ci inverters, kev tswj fais fab hauv lub tshuab hluav taws xob.
- Industrial & Transportation:Muaj automation tswj systems, hluav taws xob tsheb (EV) them chaw nres tsheb, thiab onboard fais fab mov.
Hauv cov ntsiab lus, raws li lub ntiaj teb hloov mus rau cov thev naus laus zis thev naus laus zis thiab muaj txiaj ntsig zoo dua, kev hloov hluav taws xob hloov pauv hloov pauv- raws li "tus phab ej" hauv lub ntiaj teb hluav taws xob hluav taws xob niaj hnub no- tau ua lub luag haujlwm tseem ceeb zuj zus.
